Colors of Light

Visible light ranges from around 430 x 1012 Hz to 770 x 1012 Hz. White light is a combination of all the colors of the rainbow. Learn about the color of light and work through practice questions.

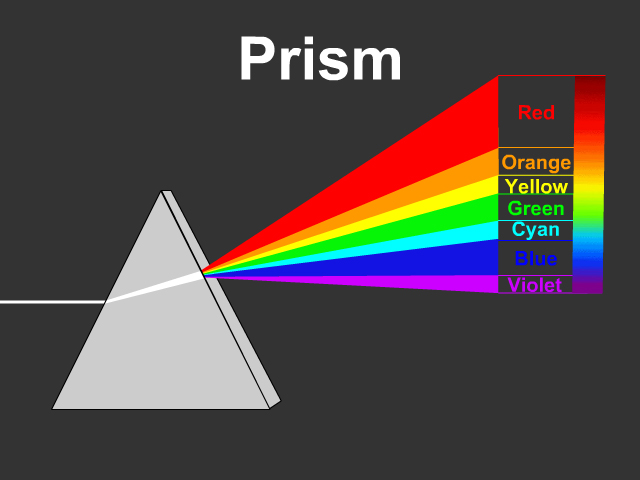

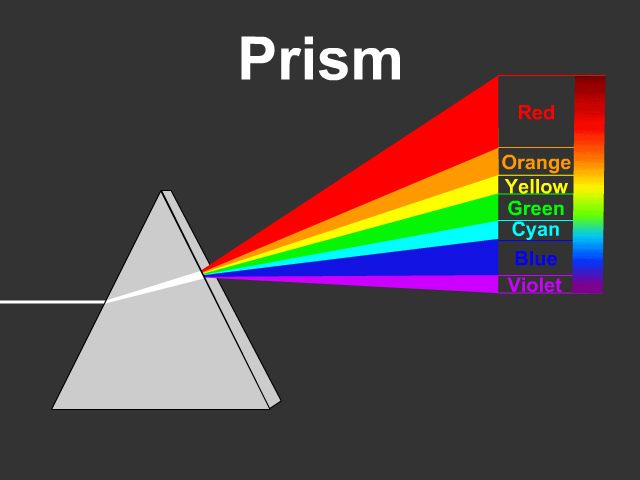

Refraction of a Prism

When all colors of light are mixed together they forms white light.

A prism is a triangular column that uses the property of a wave called refraction to separate the colors of light.  The prism is commonly made of glass which is more dense than the air.  Going from air to glass slows light down creating a bending.  Going from glass to air speeds light up bending it again.

Different frequencies of light will refract at slightly different angles resulting in a separation from white light.  White light becomes the rainbow pattern you see when colors of different frequencies separate.

Visible Light Spectrum Colors

Many people have used the mnemonic ROYGBIV.  This was a great way to remember the light color spectrum until someone decided to change it.  Not the actual colors of light in a rainbow but what we name as the colors of light.  Indigo in no longer included and cyan was added between green and blue.  The new less catchy mnemonic is ROYGCBV.  From largest wavelength to shortest the colors go Red, Orange, Yellow, Green, Cyan, Blue, and Violet.

  • Red light has the largest wavelength, lowest frequency, and least energy.
  • Violet light has the smallest wavelength, highest frequency, and most energy.

Example Questions

1. Does orange or red light have a higher frequency?

orange

ROYGCBV

Largest wavelength and smallest frequency on the left side of the mnemonic above representing colors in order.  Orange is further to the right than red so it has a smaller wavelength and higher frequency.

2. Does violet or green light have a larger wavelength?

green

ROYGCBV

Largest wavelength and smallest frequency on the left side of the mnemonic above representing colors in order.  Green is further to the left than violet so it has a larger wavelength and lower frequency.

3.  Does violet or red light have more energy?

violet

ROYGCBV

Largest wavelength and smallest frequency and least energy is on the left side of the mnemonic above representing colors in order.

Violet is further to the right than red so it has a smaller wavelength, higher frequency, and more energy.

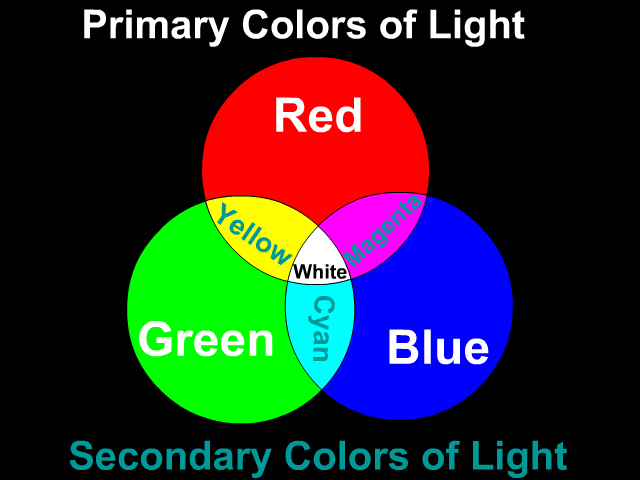

Primary Colors of Light

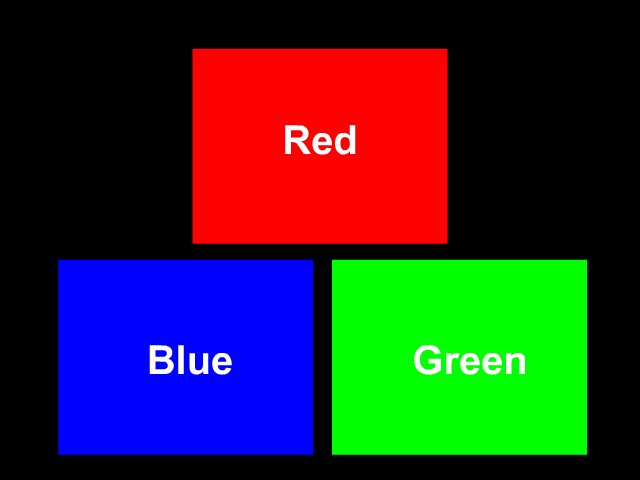

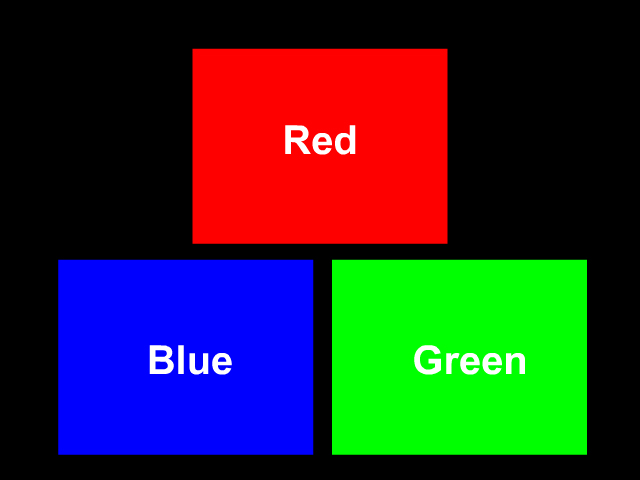

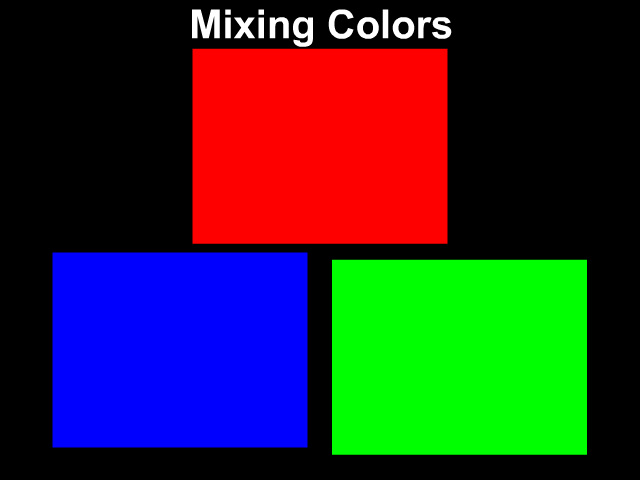

The three primary colors of light are red, blue, and green.  If you have heard otherwise it was likely pigment your teacher was talking about.  Pigment is what you would use when painting or coloring.  Color is light.  Red color would be projected from a flashlight with a red filter only letting that color light through.  In the picture, the three primary colors are on a black background with the absence of any light.

Primary Colors of Light

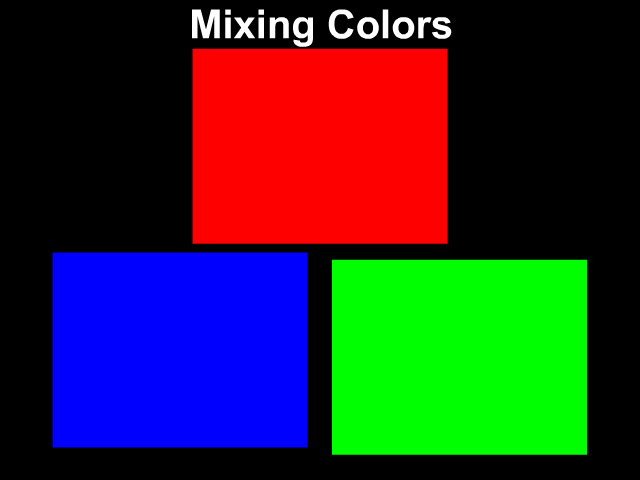

Mixing the Primary Colors of Light

When you mix the primary colors of light they give you secondary colors.

  • Primary Color + Primary Color = Secondary Color
  • Red + Blue = Magenta
  • Red + Green = Yellow
  • Green + Blue = Cyan

All primary colors mix to form white light:

  • Red + Blue + Green = White
Primary Colors of Light Secondary Colors of Light
 Red  Magenta
 Blue  Yellow
 Green  Cyan

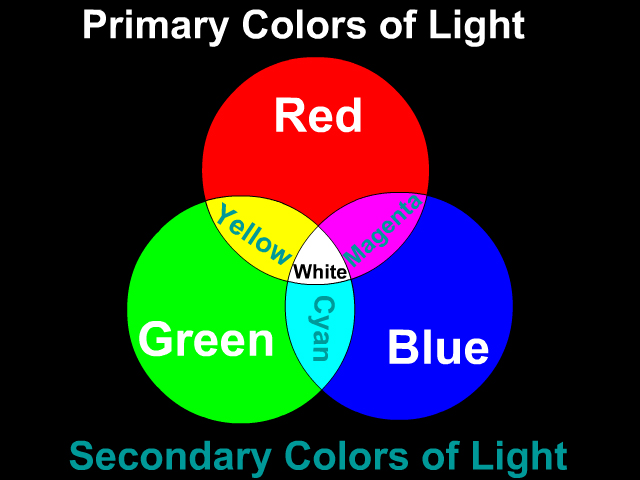

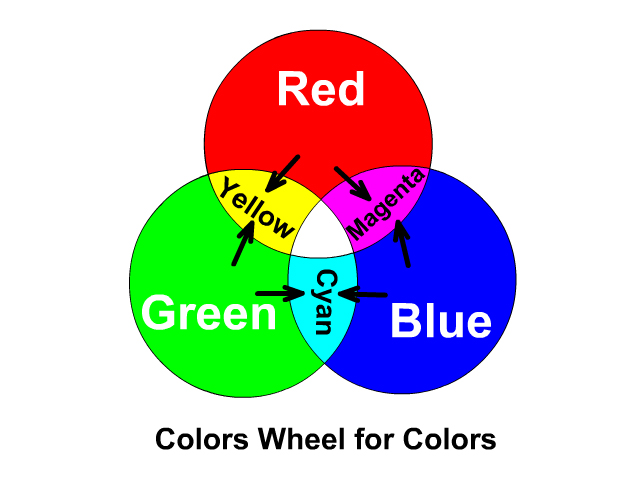

Color Wheel Diagram

The color wheel diagram is a quick picture you can draw to help you answer questions on mixing colors.

Drawing the color wheel diagram:

  1. Draw three circles on your paper all overlying the other two.
  2. Place a separate primary color (red, green, or blue) in each circle in the area furthest from the middle.
  3. Next place the mixed secondary colors in the areas between the circles
    • Primary red and green form the secondary yellow
    • Primary red and blue form the secondary magenta
    • Primary green and blue form the secondary magenta
  4. Lastly place white in the middle because it results when you mix all color of light.

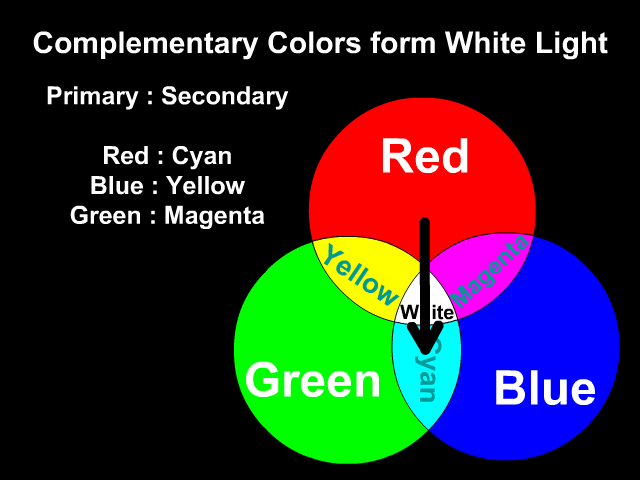

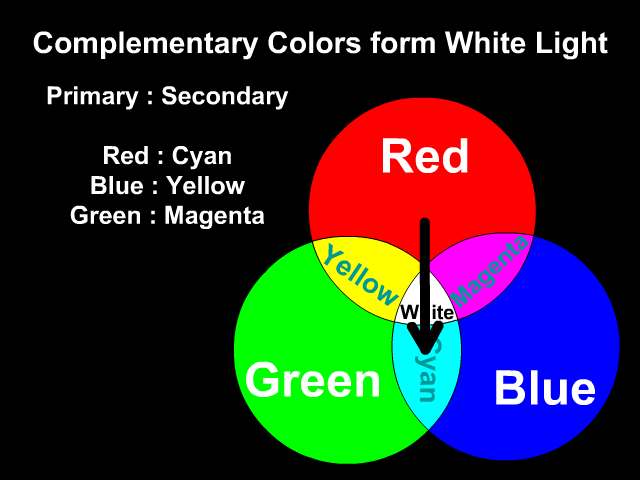

Complementary Colors of Light

Complementary colors are a primary and secondary colors that combine to form white light.  Cyan is a secondary color which is the same as having blue and green in one place.  Since blue and green mix with red to form white light, cyan can mix with red light to form white light.

You can use your color diagram to determine the secondary that mixes with the primary color.  The secondary color that is complement to each primary is directly across from it.  Notice how the complementary color is found in our animation here.

Complementary Colors

  • Primary + Secondary = White Light
  • Red + Cyan = White Light
  • Blue + Yellow = White Light
  • Green + Magenta = White Light
Complementary Colors of Light

What happens when you mix a primary color with a non-complimentary secondary color?

If you mixed the secondary color yellow with red you get yellow.  Yellow is already red and green combined.  Having another red light would intensify the red light but you still have only red and green light which makes yellow.

Green + Red = Yellow

Green + Red + Red = Still Yellow

Example Questions

4. What are the primary colors of light?

Red, Blue, Green

5. What are the secondary colors of light?

Cyan, Magenta, Yellow

6. What color do you get when you mix red and green light?

Yellow

Color Wheel for Colors
Color Wheel For Primary Colors

7. What color do you get when you mix red and blue light?

Magenta

Color Wheel for Colors
Color Wheel For Primary Colors

8. What color do you get when you mix yellow and blue light?

White

Yellow light is the same as having red and green.  Add blue to that and now you have red, green, and blue which make white light.

9. What color do you get when you mix yellow and green light?

Yellow

Yellow light is the same as having red and green.  Add green to that and now you have red, green, and a bit more green.  This is still red and green which makes yellow light.

10. What is a complementary color?

A complementary color is one that if mixed with the primary make white light.

11. What is the complementary color of red?

Cyan

A complementary color is one that if mixed with the primary make white light.

Cyan = (Green + Blue)

If you add red to green and blue you get:

(Green + Blue) + Red = White

Primary Pigments

Pigments are what you are using while drawing or painting.  Pigments subtract light.  When you mix all the pigments together they subtract all color and form black.

  • Colors are additive and add light and while pigments are subtractive and take away light

The primary pigments are the secondary colors.  The secondary pigments are the primary colors.

You can make a pigment wheel diagram kind of like the color wheel diagram.  Instead of primary colors in the color wheel diagram, primary pigments are placed on the outsides or the pigment wheel diagram.

Between the primary pigments in the pigment wheel diagram are the mixed secondary pigments.

  • Primary Pigment + Primary Pigment = Secondary Pigment
  • Magenta + Cyan = Blue
  • Cyan + Yellow = Green
  • Yellow + Magenta = Red

All primary pigments mix to form black:

  • Magenta + Cyan + Yellow = Black

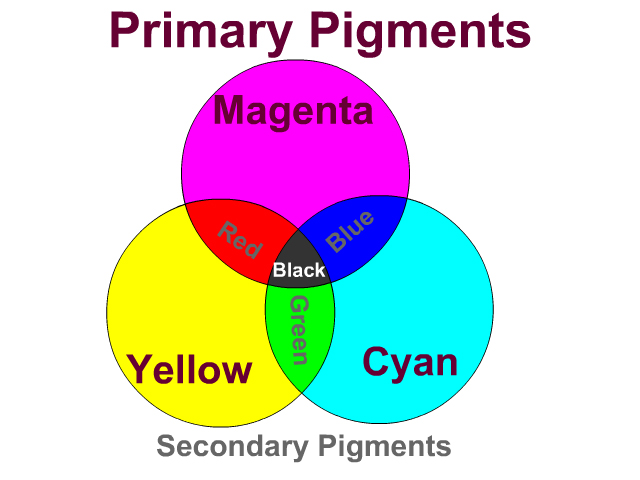

Pigment Mixing Wheel

Complementary Pigments

The complimentary pigments form black.  The complimentary pigment would be directly across from the primary.

  • Primary Pigment + Secondary Pigment = Black
  • Magenta + Green = Black
  • Cyan + Red = Black
  • Yellow + Blue = Black
Primary Pigments Secondary Pigments
 Magenta  Red
 Yellow  Blue
 Cyan  Green

Using the Color Wheel for Pigments

Instead of drawing a color wheel and pigment wheel to answer questions, you can read the color wheel backwards for pigments.  The inside of the color wheel will be the primary pigments.  Following the primary pigments outwards, as seen by the arrows, tells you what secondary pigment is produced when two primary pigments mix.

My advice for any questions in this unit is to draw the color wheel on a quiz or test and use it inwards for colors and outward for pigments.

Color Wheel For Primary Colors
Color Wheel for Pigments
Color Wheel for Pigments

12. How are colors different that pigments?

Colors are additive and add light and while pigments are subtractive and take away light.

13. What are the primary pigments?

Cyan, Magenta, and Yellow

14. What are the secondary pigments?

Blue, Green, and Red

15. What pigment do you get when mixing yellow and magenta?

Red

Color Wheel for Pigments
Color Wheel for Pigments

16. What pigment do you get when mixing cyan and yellow?

Green

Color Wheel for Pigments
Color Wheel for Pigments

17. What pigment do you get when mixing cyan, yellow, and magenta?

Black

Combining the three primary pigments subtract all color and make black.

Primary Color Filter

A light filter can be used to absorb some light while allowing others through.  If a primary color filter (red, blue, or green), only light of that primary color will be transmitted.

If you are looking through a red filter, light will appear red or black if that color of light is not present.

Secondary Color Filter

With a secondary color filter (yellow, magenta, or cyan), the secondary color or either primary colors consisted of can be transmitted.

In this picture we have all the primary colors projected through a red filter.

On the left you see the colors consisted in the color.  If a secondary color you see two primary colors.  If white light you see all three colors.

On the right side a person would see red light if that was present.  All other colors get absorbed and you would see black if that was not present when transmitted through the filter.

Example Problems

18. What color would you see if looking through a red filter at yellow light?

Red

Red is present since yellow is a combination of red and green.  Green gets filtered out and you see red.

19. What color would you see if looking through a blue filter at yellow light?

Black

Blue is not present since yellow is a combination of red and green.  Green and red gets filtered out resulting in no color transmitted.  With the absence of color, the filter would be black.

Color Wheel With Blue Filter

20. What color would you see if looking through a yellow filter at magenta light?

Red

Magenta is a combination of red and blue.  A yellow filter lets green and red through.   Blue gets filtered out leaving only red.

Interactive Refraction Simulation

Use the PhET Interactive below to study the properties of light.

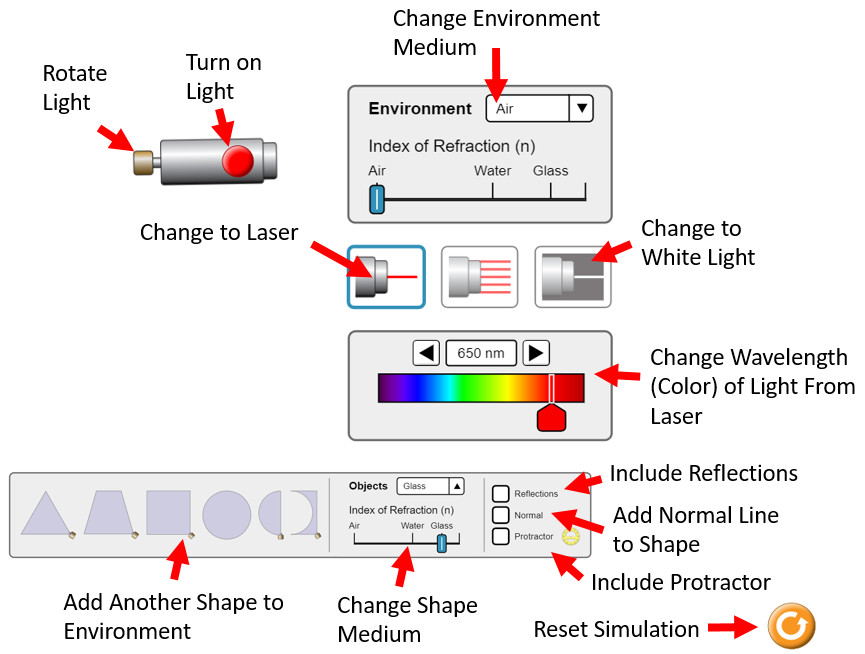

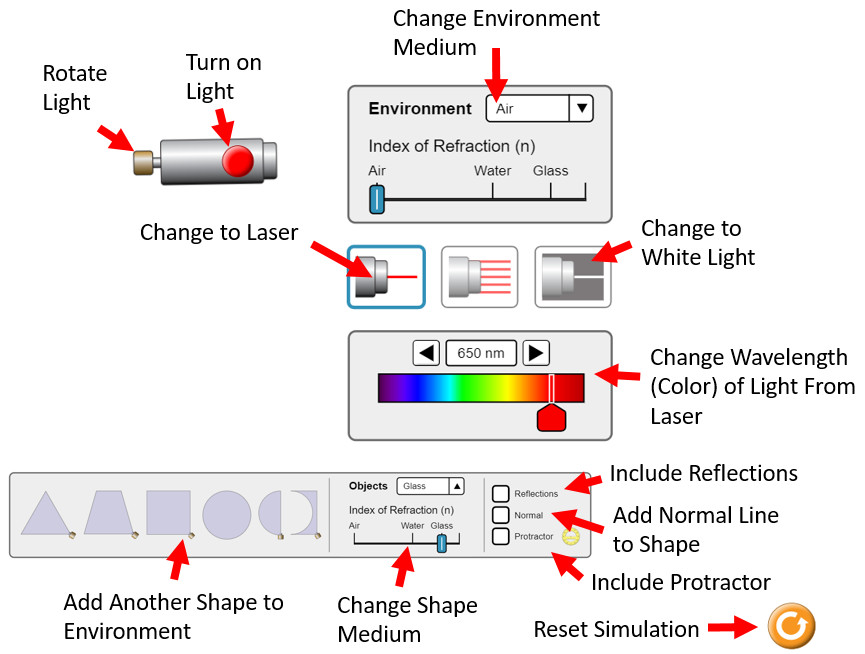

Click on Prisms in the simulation below and follow the directions in the picture to change variables.

Explore with our prisims minilab.  (Click Here to Download the Prisms Minilab)
